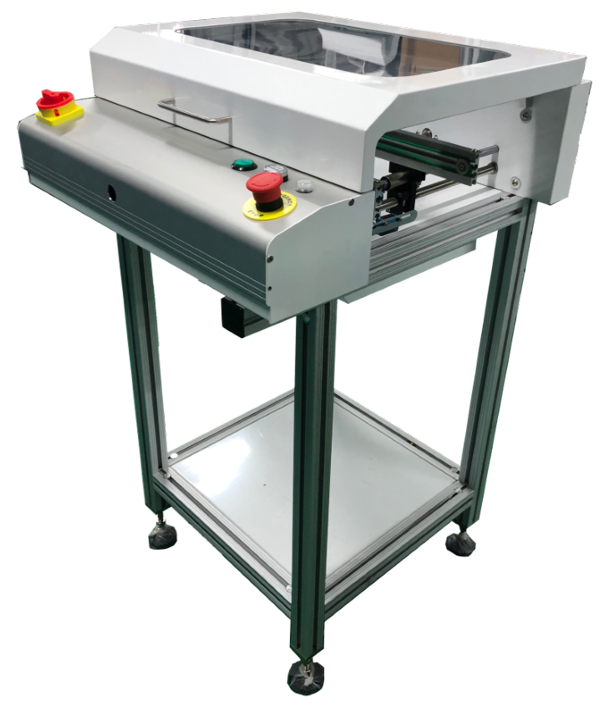

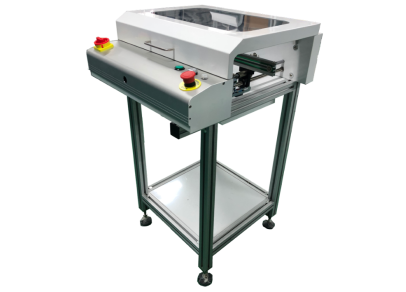

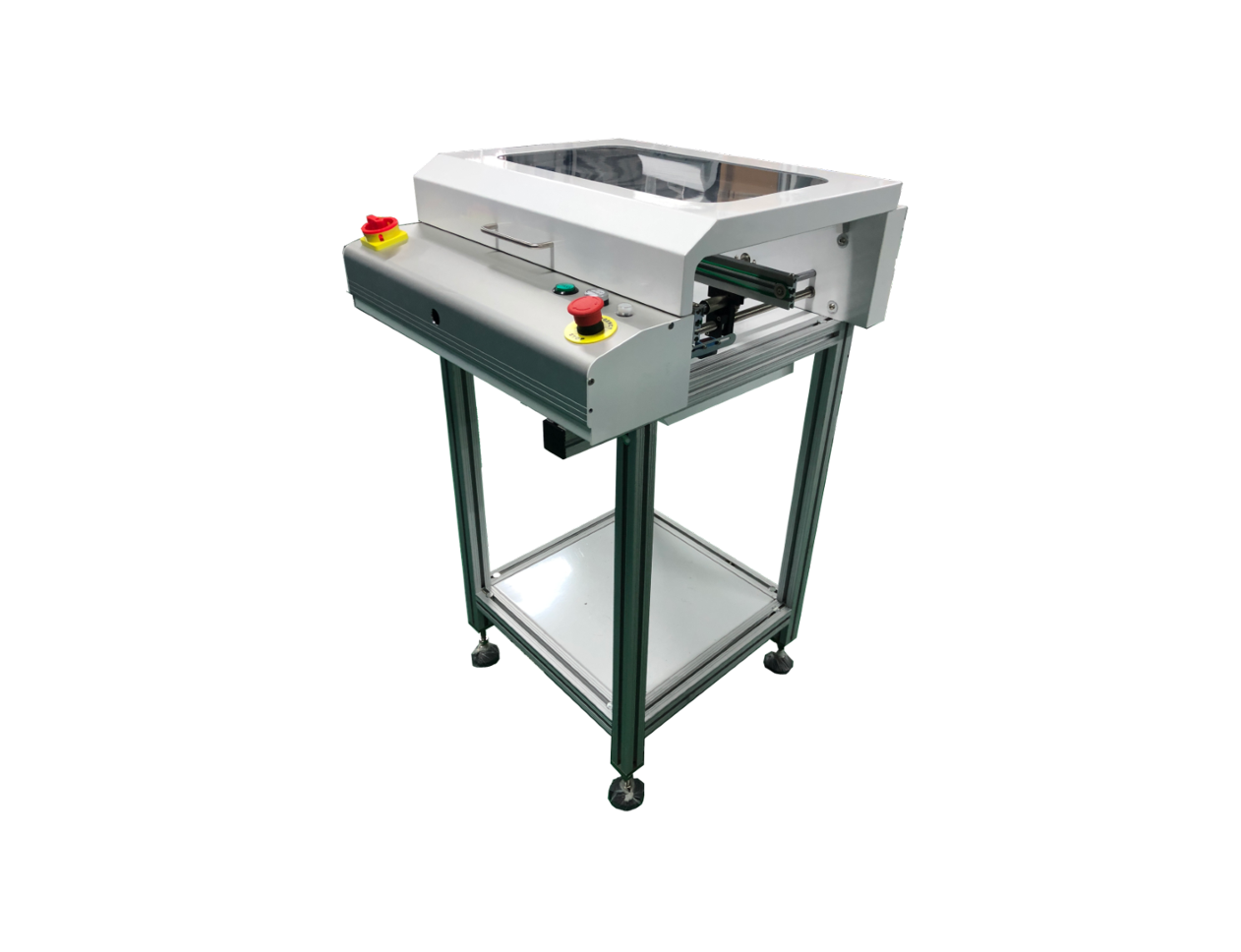

e-flex hybrid conveyor

We also have hybrid versions for all our series of standard conveyors. The look is between a standard and a high eng ones, with aluminum finishings, and tough a bit more expensive than the standard ones, it can give a nicer image to your SMT line as a whole. Feel free to inquire for details about this type of conveyors.

Features

• Modular design, PLC controlled
• Stability enhanced by heavy design
• High-end rails on top of an economic type structure
• Smooth and parallel width adjustment (stainless steel screws)
• Different lengths available upon request
• Multi-segment concept available upon request
• Automatic/Manual modes
• Variable speed control
• Inspection button
• SMEMA compatible
• Conveyor height 950±30mm

Options

• ESD Covers anti-dust
• Touch screen
• High-Clearance on request
• Cooling fans on top/bottom for after-reflow
• Light system for better inspection
• Support for Monitor
• Shelf with ESD component boxes
• Motorized/Automatic width adjustment
• Choice of different belt width and chain transport system
• Mechanical stopper
• Foot pedal pass control
• Narrow footprint
• Safety interlocker for the covers
