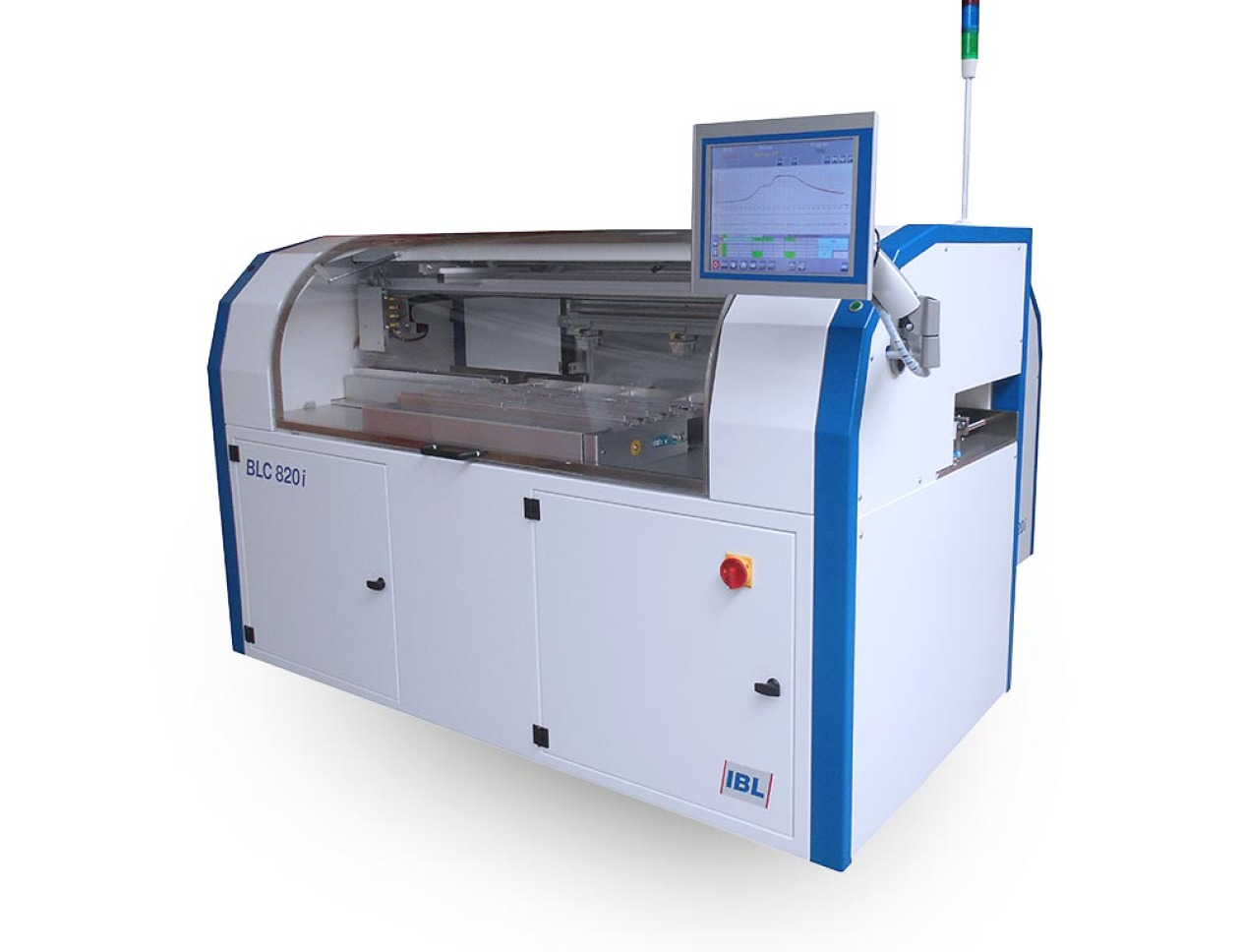

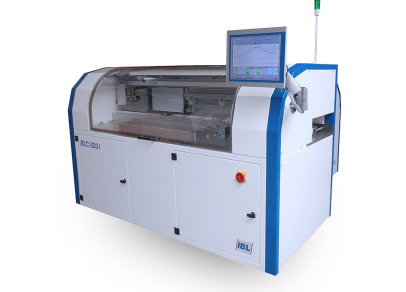

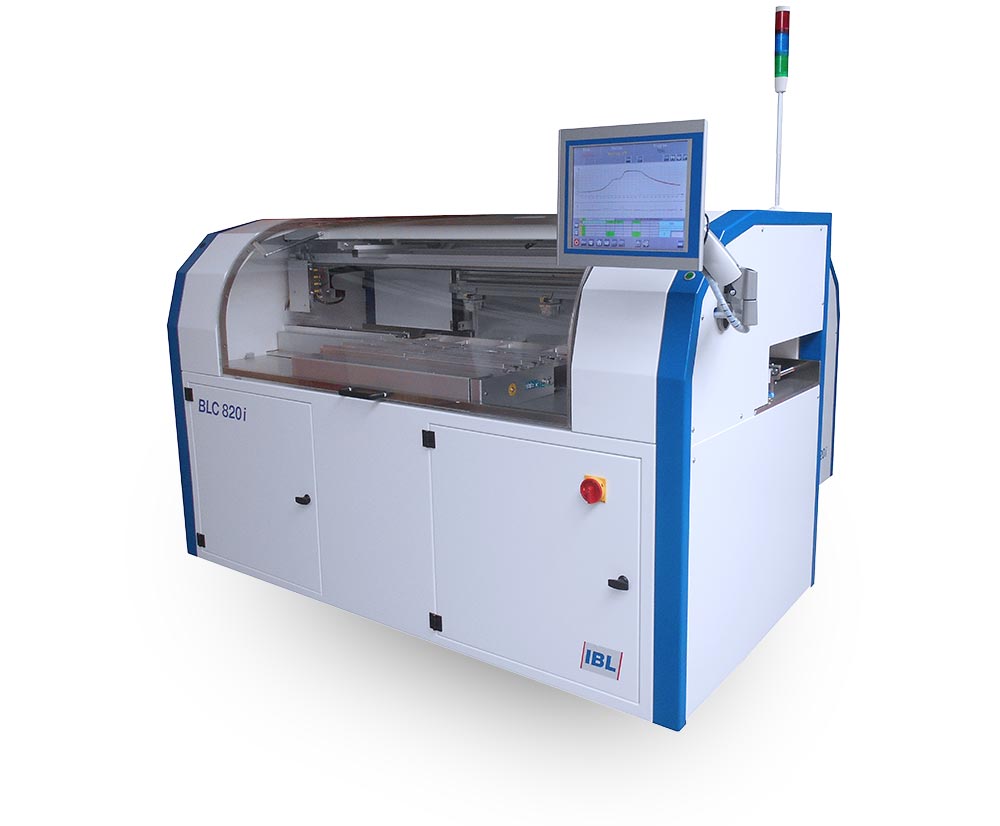

IBL BLC Inline Vapor Phase Oven

The BLC inline model offers an environmentally friendly and versatile solution for high-quality soldering. This machine excels at handling the most complex soldering applications with ease, ensuring a perfect balance between large and small components during soldering without the risk of overheating. It seamlessly integrates into a production line, with the flexibility to operate in batch mode when needed. The Intelligent Profiling System (IPS) provides precise control over temperature rise, ensuring optimal soldering profiles. Coupled with the unique patented Soft Vapor Phase, it ensures that components remain safe from excessive temperature increases.

Thanks to its exceptional energy efficiency and lower exhaust air volume compared to other systems, it offers significant reductions in operating costs. The machine delivers superior heat transfer in an inert, oxygen-free environment, eliminating the need for expensive nitrogen. Its two-chamber design features a large, intuitive touch display, simplifying setup and operation. With the ability to solder a wide range of assemblies at the same time using a single profile, the BLC Inline Vapor Phase Reflow system is the ideal choice for a variety of soldering needs.

Key Features:

• High-performance unit designed to meet the most demanding soldering requirements
• Available in different machine configurations with carrier sizes from 450 x 540 x 80 mm to 850 x 540 x 80 mm
• Compact footprint for space efficiency
• Low energy and fluid consumption thanks to the 2-chamber design with integrated heat exchanger
• Unmatched precision and process quality with patented Soft Vapor Temperature Control (SVTC)
• Simple, one-step profile setup with Intelligent Profiling System (IPS)
• Extensive range of adjustable solder profiles
• Supports both lead-free and leaded soldering with a single fluid
• Live temperature monitoring through IBL Software (VP-Control) without the need for a profiler
• Traceability and documentation via IBL Software (VP-Control), optional barcode functionality
• Minimal maintenance with Cool Handling (all moving parts outside the process chamber)
• Patented, maintenance-free transport system
• Integrated automatic fluid filtration system
• Observation window into the process chamber
• Optional patented Rapid Cooling System (RCS) for cooling sensitive parts
• Custom sizes available upon request
