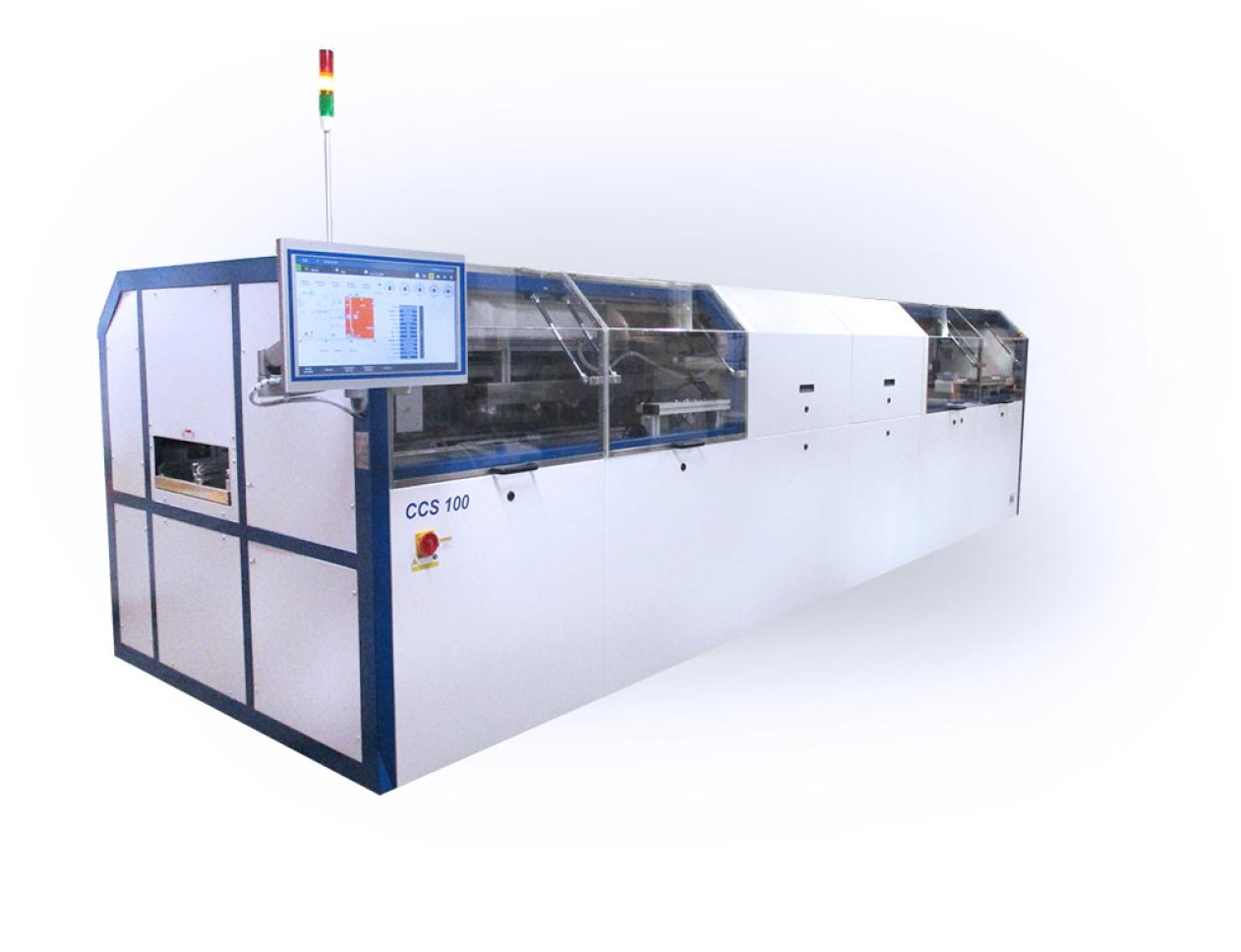

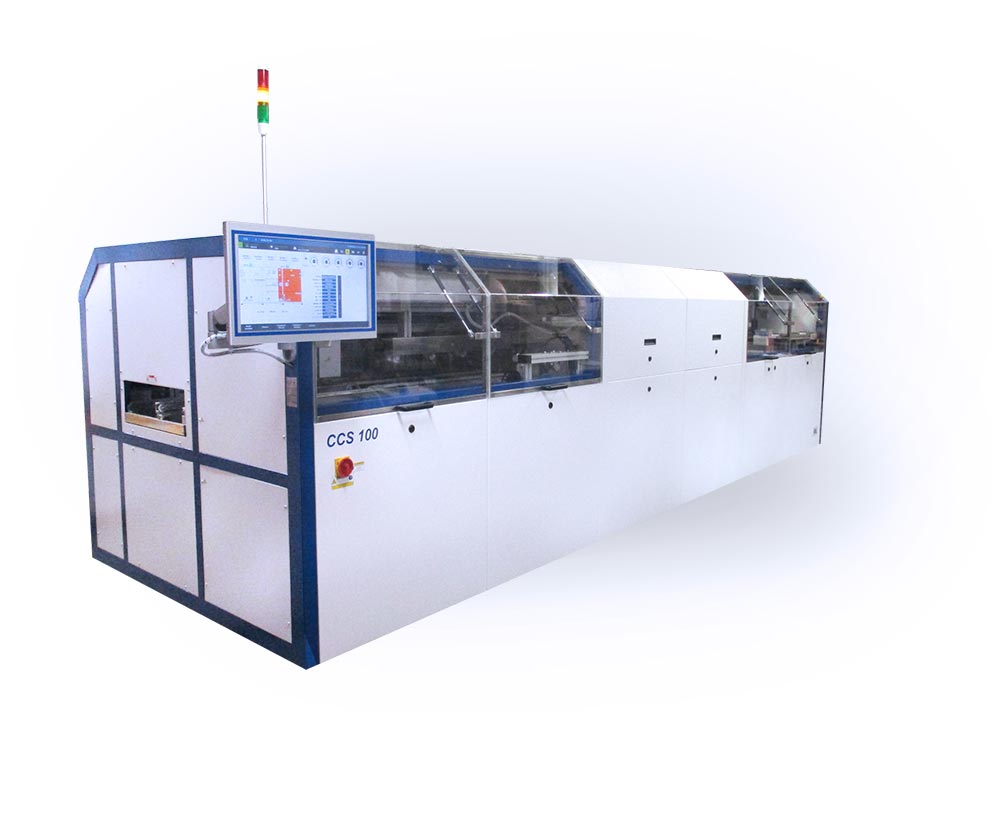

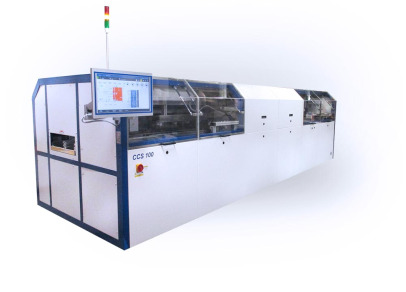

IBL CCS100 Vapor Phase Reflow Oven

The CCS100 is a powerhouse in inline soldering, designed for continuous 24/7 operation with unmatched precision, efficiency, and quality. Engineered for mid- to high-volume production, this compact system offers exceptional process flexibility, outstanding solder quality, and high productivity—all while minimizing maintenance efforts.

Cutting-Edge Technology for Maximum Efficiency

✔ Multiple-Carrier System – Designed for seamless operation with variable lane configurations to meet diverse production needs.
✔ Smart Modular Design – A multi-zone structure featuring an upstream buffer and downstream cooling zone ensures consistent performance.
✔ Powerful Cooling Technology – Advanced bottom cooling guarantees optimal board stability post-soldering.
✔ Efficient Maintenance System – Integrated Galden levelling and filtration keep operations smooth while extending machine lifespan.
✔ Innovative Heat Exchanger – Enables efficient fluid recovery, reducing waste and maximizing resource utilization.
✔ Automated Operations – Features automatic lane width adjustment and hands-free loading/unloading of boards for streamlined production.

Intelligent Process Control & Seamless Connectivity

The CCS100 is equipped with a state-of-the-art machine control system that ensures precise process monitoring with real-time visibility of all process values and steps. Its integrated industrial PC and intuitive 21.5” HMI panel enable easy network integration, offering advanced traceability and data management.

Next-Level Vapour Phase Soldering

With the introduction of patented Vapour Energy Control (VEC), the CCS100 sets a new industry benchmark. This revolutionary system enables highly flexible and responsive process control, allowing any soldering profile to be set and repeated without moving PCBs in the vapour—ensuring precision like never before.
