- PDR IR-E6 rework station for XL PCBs

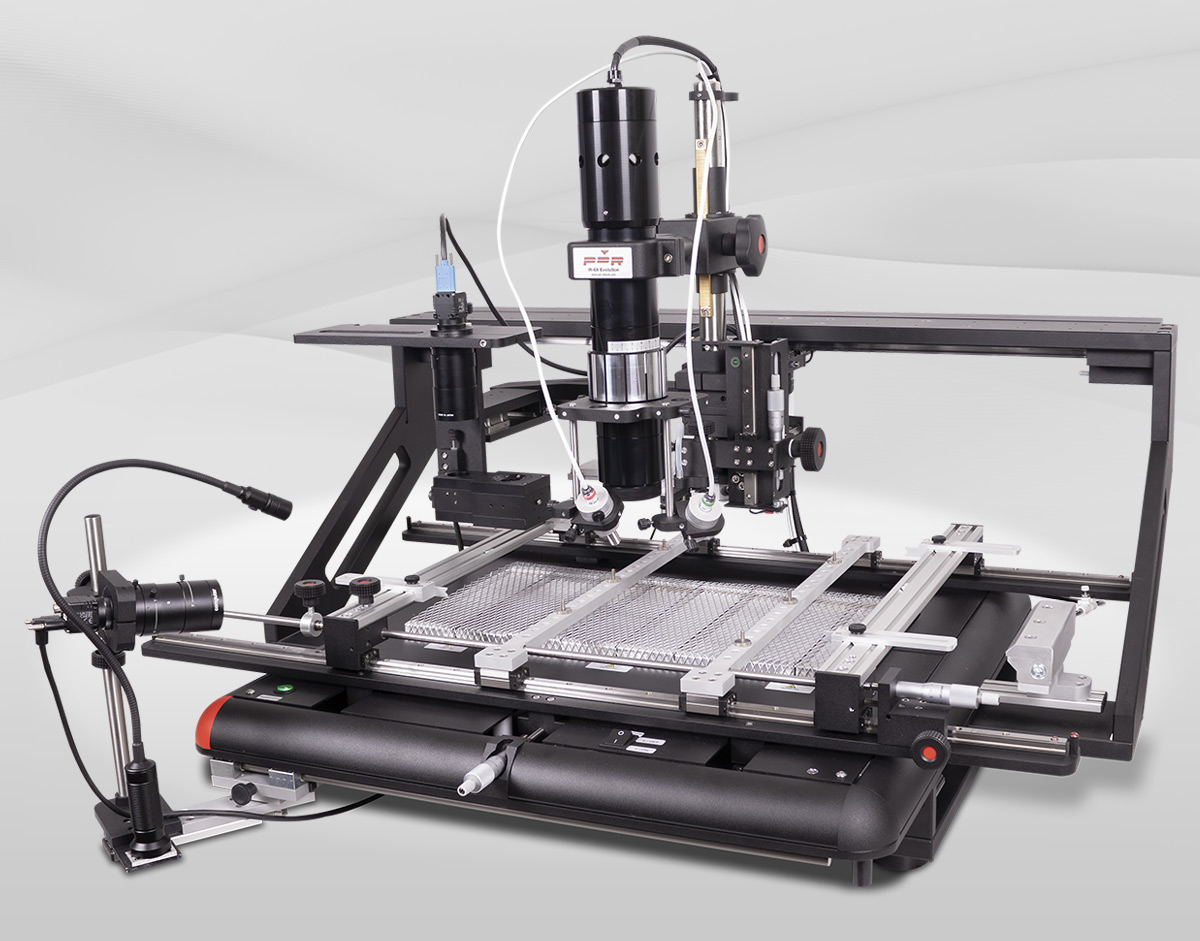

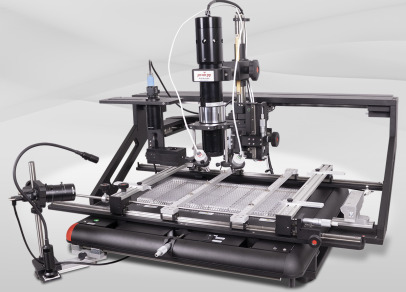

PDR IR-E6 rework station for XL PCBs
- Advanced Focused IR component heating
- Large Quartz IR PCB preheating with dual-zone
- 24”/620mm PCB Capacity
- Split Beam prism system for simultaneous PCB/component viewing

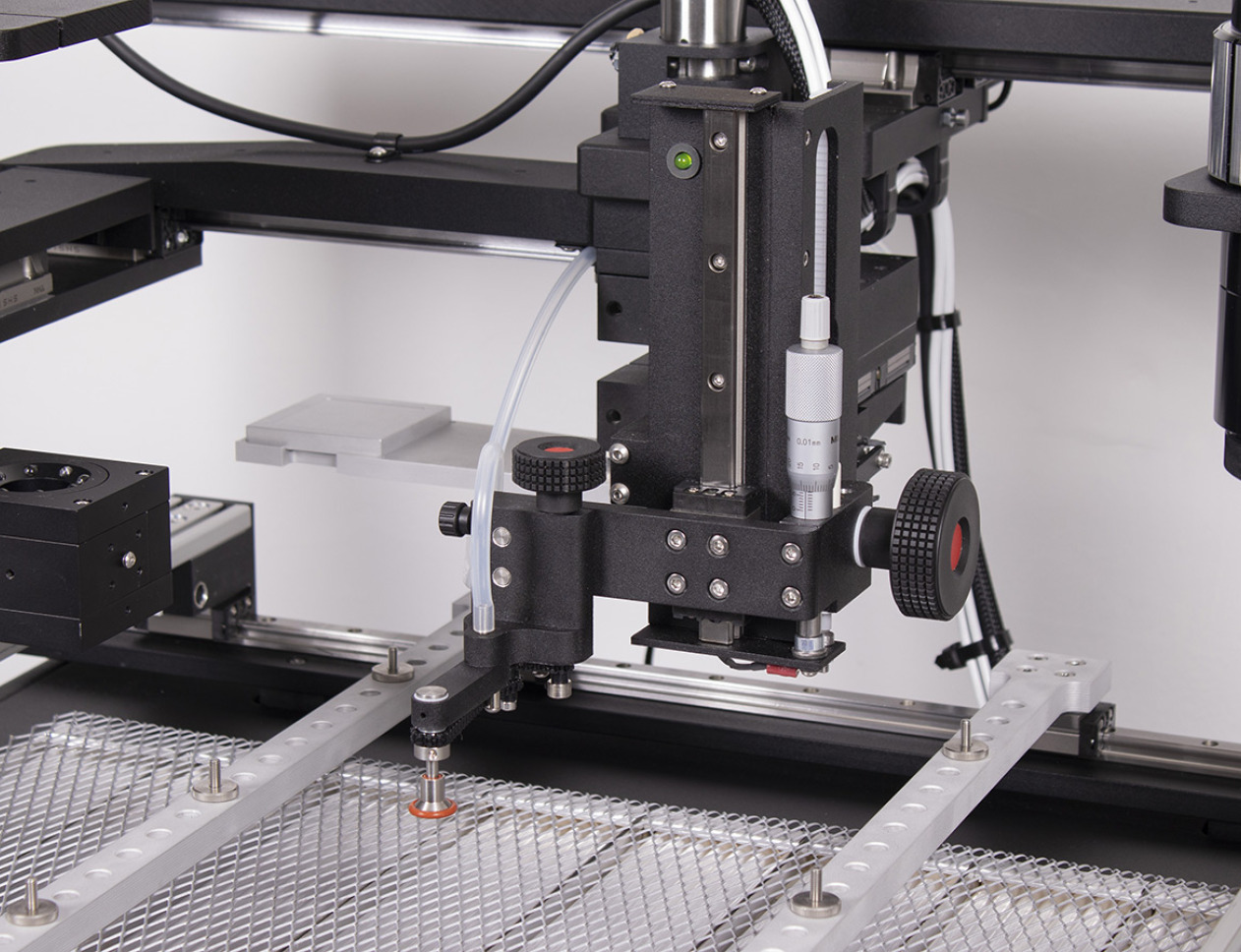

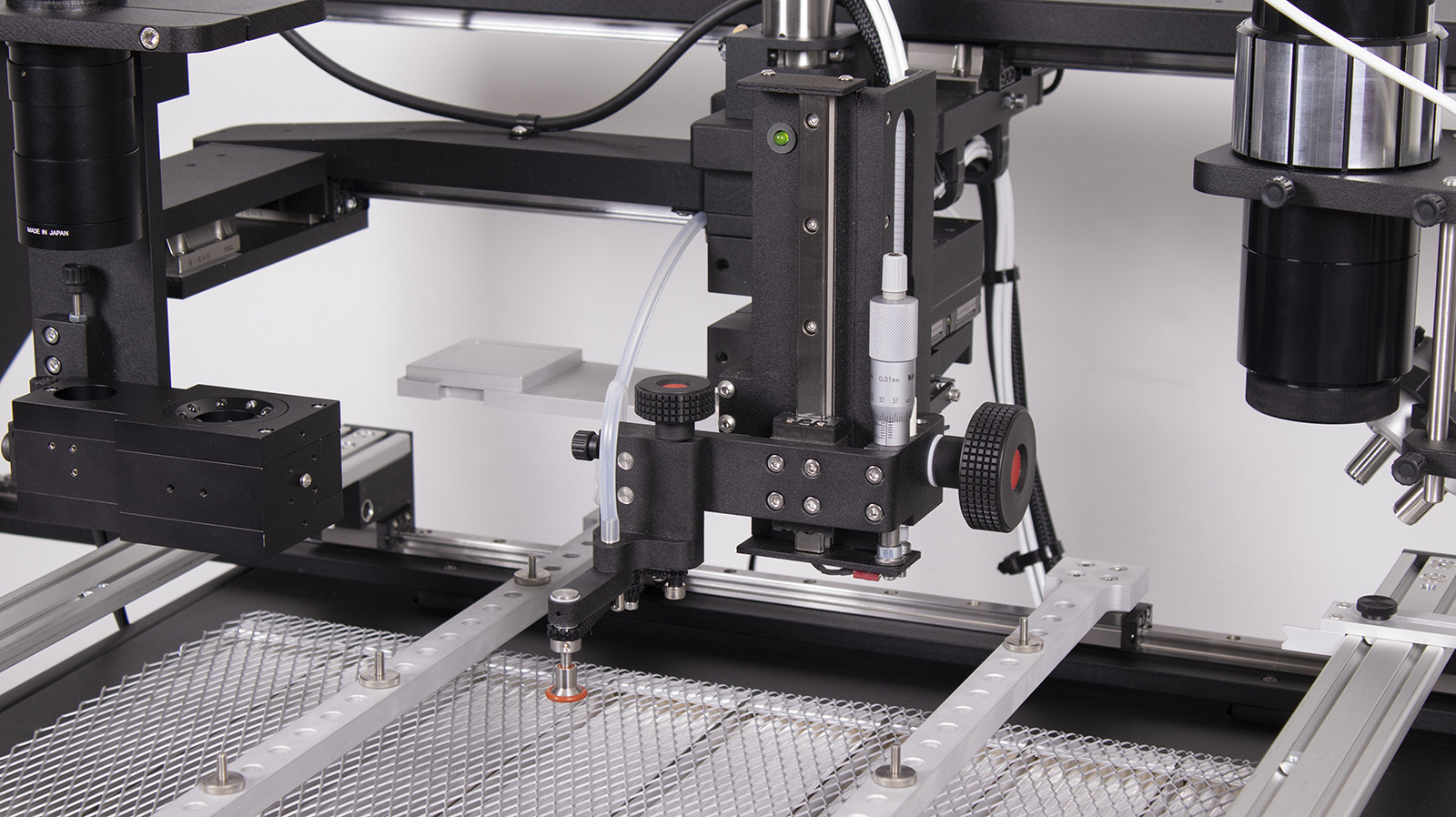

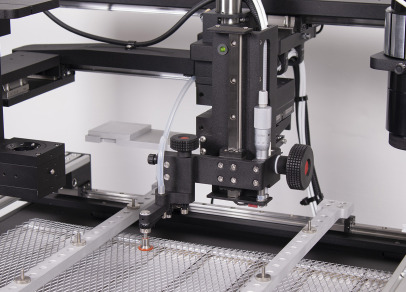

- Precision Components Pick and Placement up to 10um

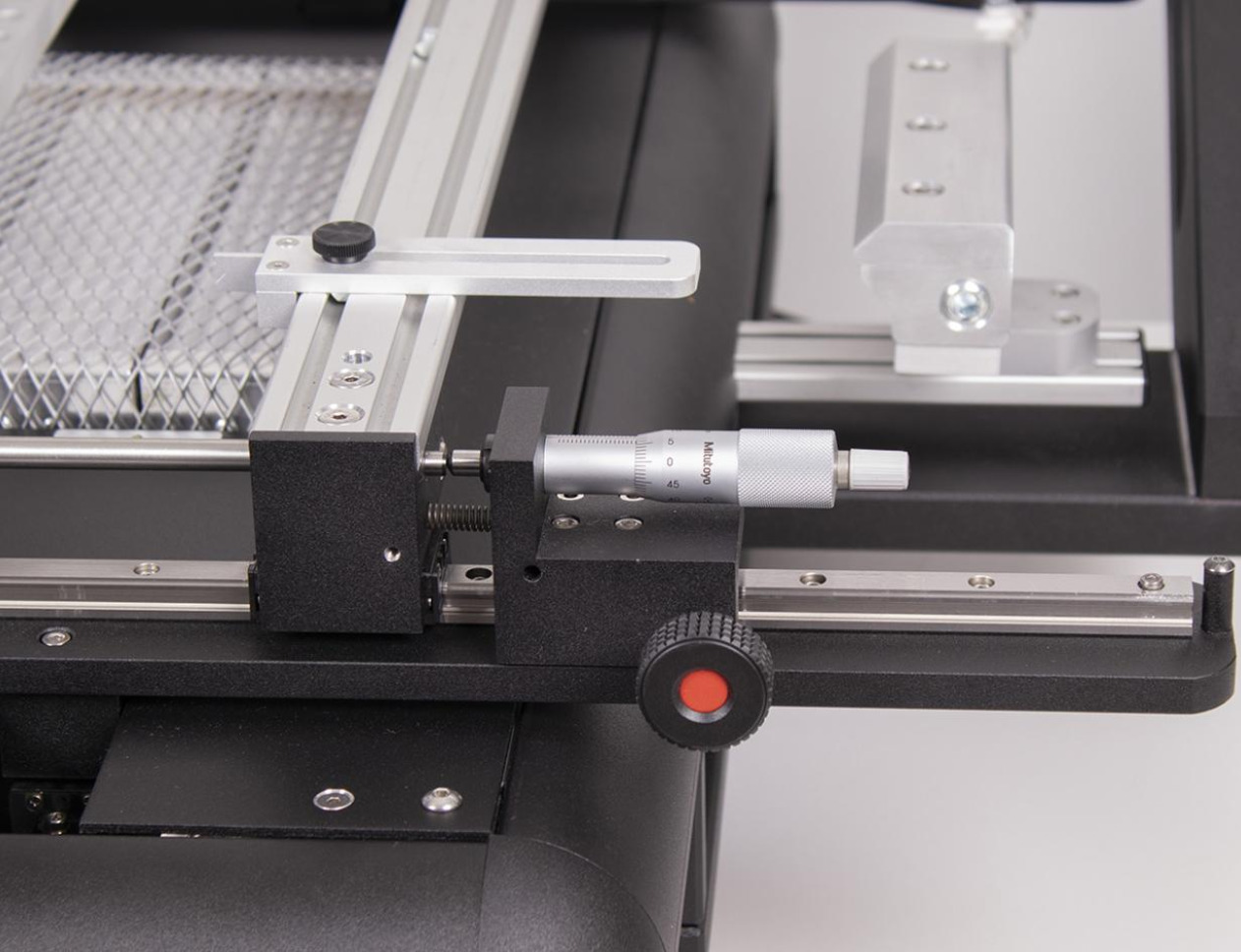

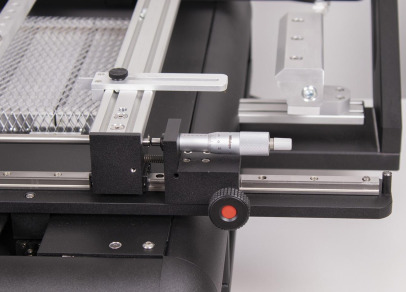

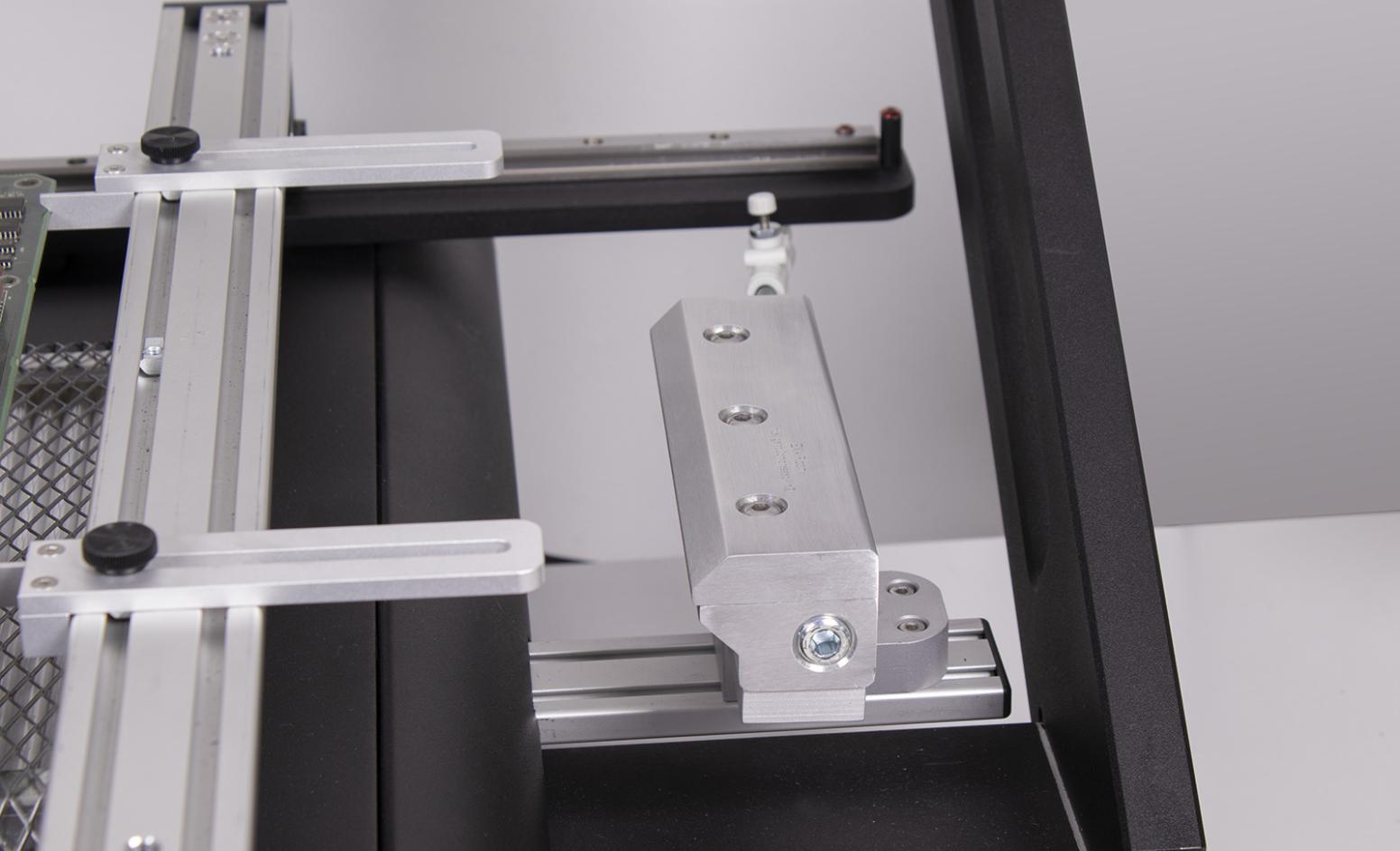

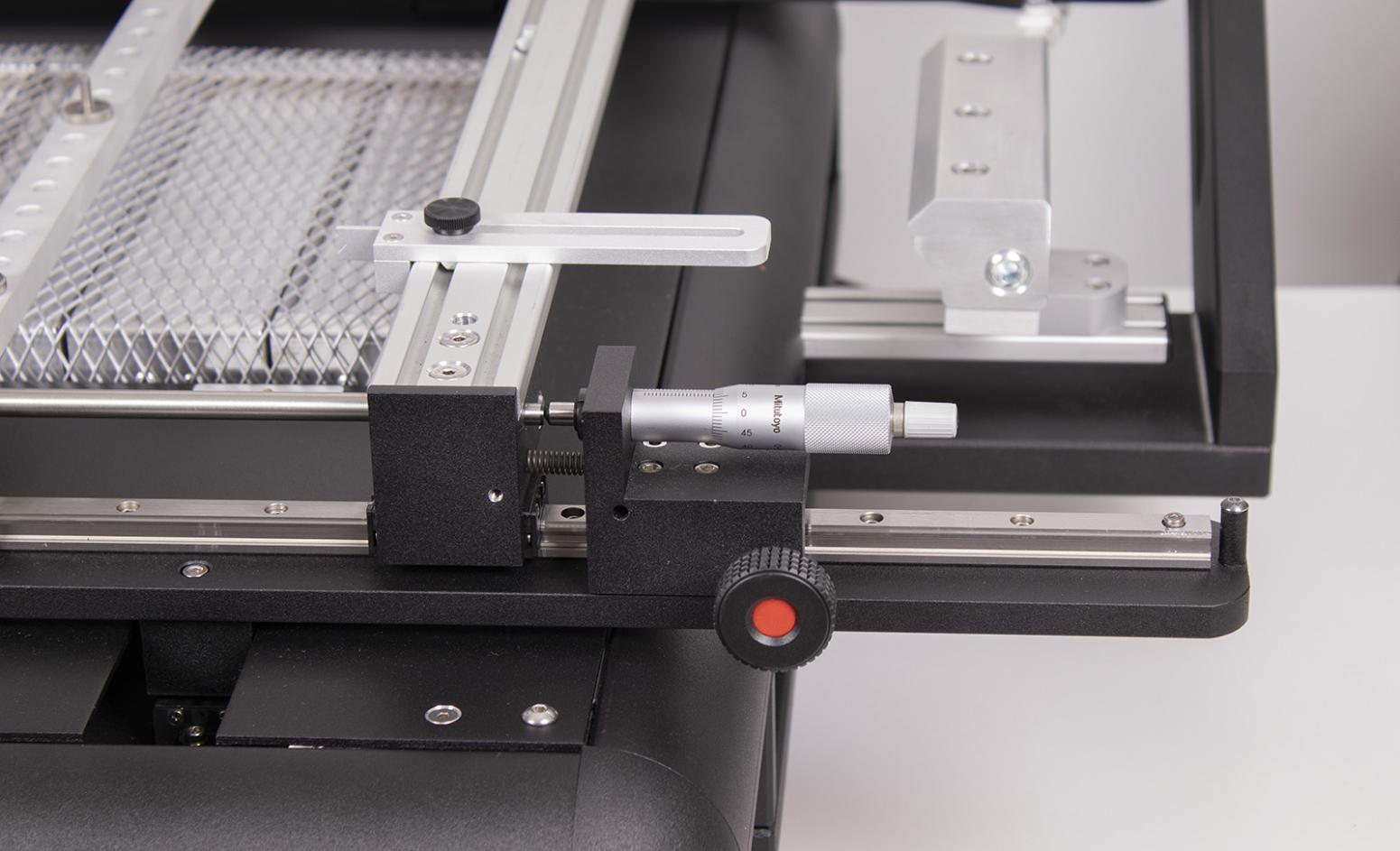

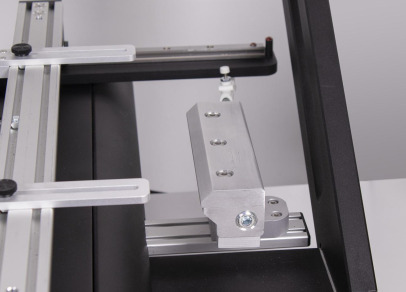

- Professional PCB handling
- Component Nest/Flux Application Facility

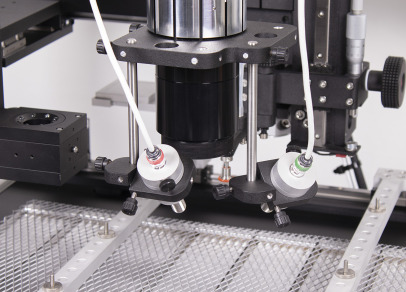

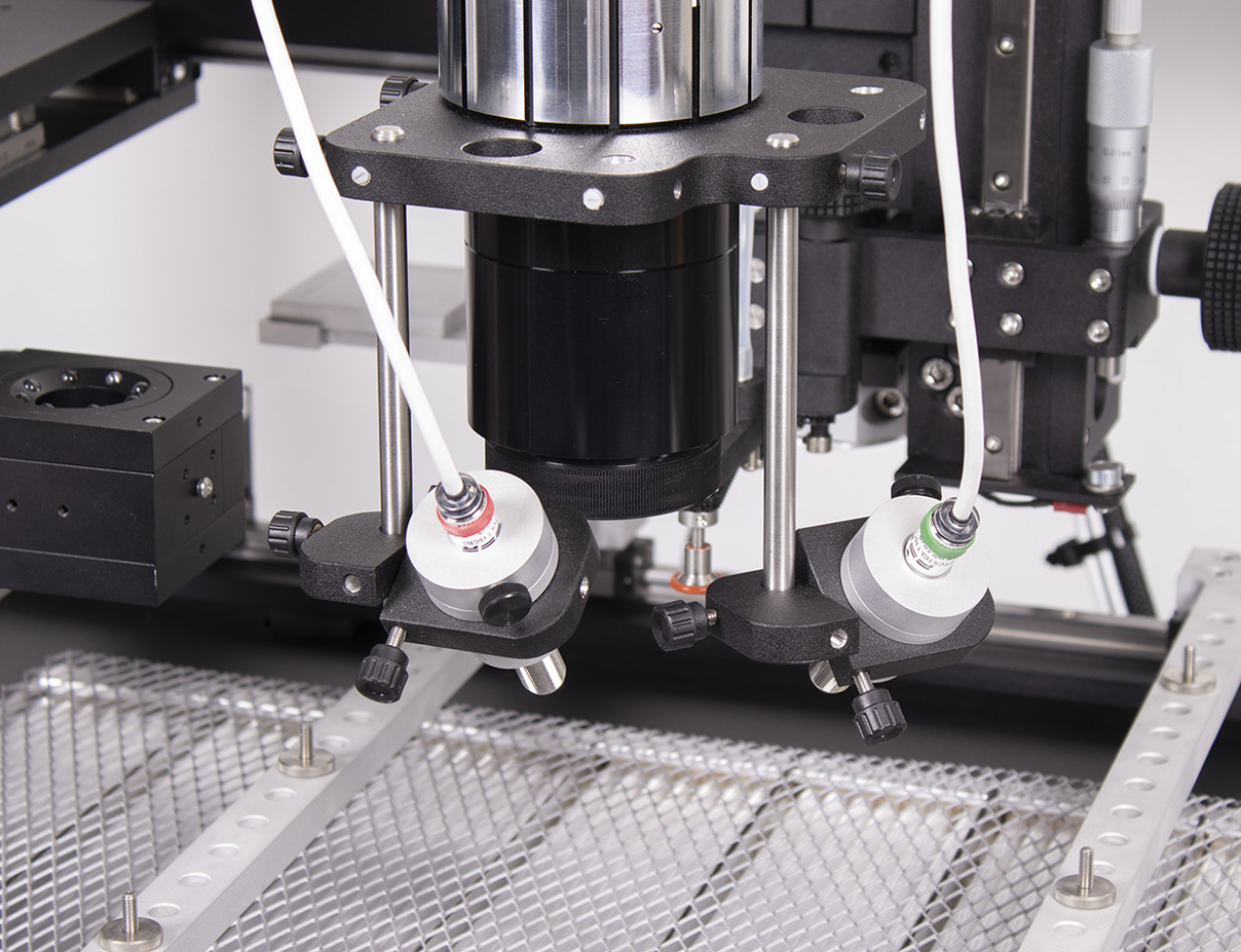

- Closed Loop Non-Contact Temperature Sensing
- Advanced Automatic Thermal Process Control
- Reflow Process Observation Camera
- PCB Forced Air Cooling
Bench Area: 2000mm (w) x 1000mm (d)
Weight: 100kg
Warranty: 2 years
Voltage Frequency: 208-240 volts 50/60Hz, up to 3KW
Top Heater Power: 150W Focused Infrared up to Ø70mm Spot
PCB Preheater Power: 3200 Dark IR
PCB Preheater Heating Area Size: 500x240mm
Number of PCB Preheater Zones: 3 Zones
Spot Size Included: F700 (Ø 25-70mm)
Component Placement: Split Beam Prism Alignment
Placement Accuracy: Up to 10um
Component Temperature Sensing: Non-Contact IR Sensor
PCB Temperature Sensing: Contact Probe
Max PCB Size: 18”/620mm
Max Component Size: 55x55mm
Min Component Size: 01005
Number of TC Channels: 4
Operating Software: PDR’s Thermoactive V8 Software Suite suitable for Windows 11
