10x – 45x* (4.5:1 zoom ratio) stereo zoom magnification (180x max.)
(* with standard 1x objective)

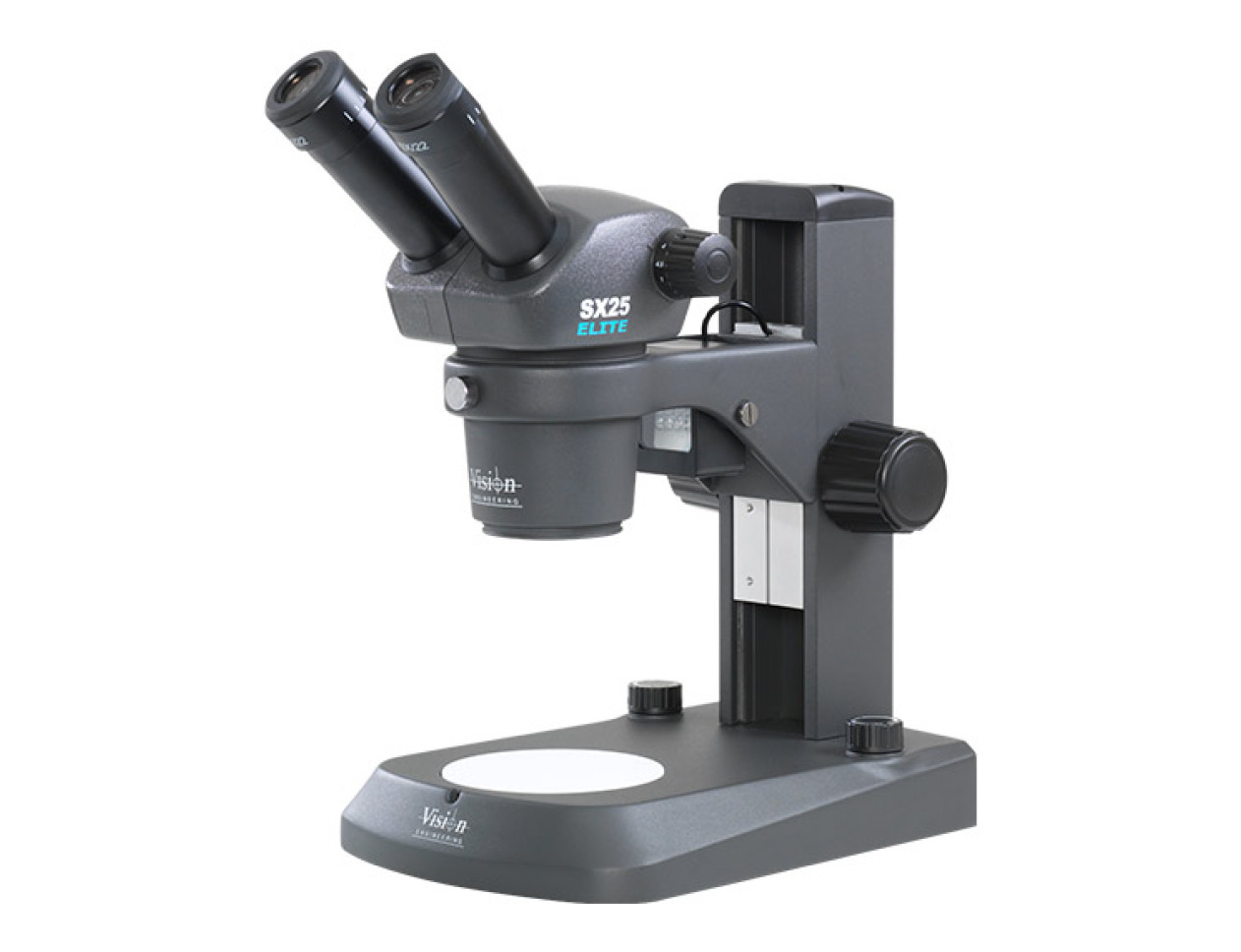

Low cost stereo microscope with high quality optics
Precision optics deliver high resolution and flat field
Long-life (up to 6,000 hours), true colour LED illumination
Long working distance and large depth of field
Robust and easy to use
Optical data
| Eyepieces | Objective Lenses | Zoom Range | Working Distance |
| 10x/20 E.W. | 0.5x* | 5x – 22.5x | 180mm |
| 15x/16 W.F. | 0.5x* | 7.5x – 33.8x | 180mm |
| 20x/11 W.F. | 0.5x* | 10x – 45x | 180mm |
| 10x/20 E.W.. | 0.75x | 7.5x – 33.8x | 120mm |
| 15x/16 W.F. | 0.75x | 11.3x – 50.6x | 120mm |
| 20x/11 W.F. | 0.75x | 15x – 67.5x | 120mm |
| 10x/20 E.W. | 1.0x | 10x – 45x | 97mm |
| 15x/16 W.F. | 1.0x | 15x – 67.5x | 97mm |
| 20x/11 W.F. | 1.0x | 20x – 90x | 97mm |
| 10x/20 E.W. | 2.0x | 20x – 90x | 30mm |
| 15x/16 W.F. | 2.0x | 30x – 135x | 30mm |
| 20x/11 W.F. | 2.0x | 40x – 180x | 30mm |
