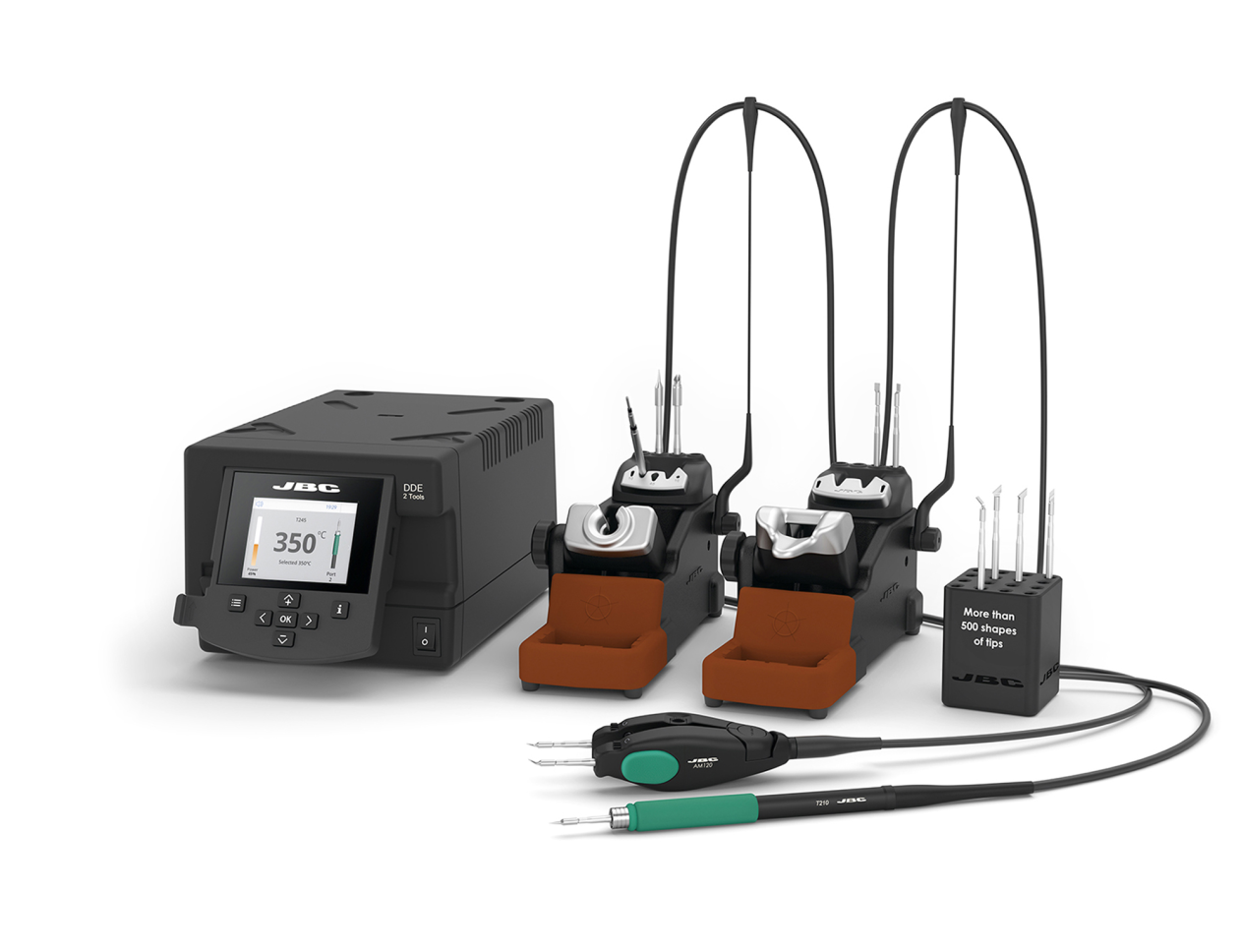

DDPE Station 2-Tool Precision Rework
DDPE offers fast and precise rework for SMD components and small outline ICs.
This station is ideal for handling small, delicate components, powered by JBC Most Efficient Soldering System. It features Intelligent Heat Management to extend tip life and reduce energy consumption.
This station is ideal for handling small, delicate components, powered by JBC Most Efficient Soldering System. It features Intelligent Heat Management to extend tip life and reduce energy consumption.
SPECIFICATIONS
Nominal power
370W
Peak power (Tool)
150W per tool
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
Idle temp. stability (still air)
±1.5ºC / ±3ºF / Meets and exceeds IPC J-STD-001F
Temperature accuracy
±3%
Temp. adjustment
±50ºC / ±90ºF Through station menu setting
Tip-to-ground resistance
<2 ohms
Tip-to-ground voltage
<2 mV RMS
USB-A
Graphics and profiles
USB-B
FAE / Robot connector
Remote control or FAE Fume Extractor connection
