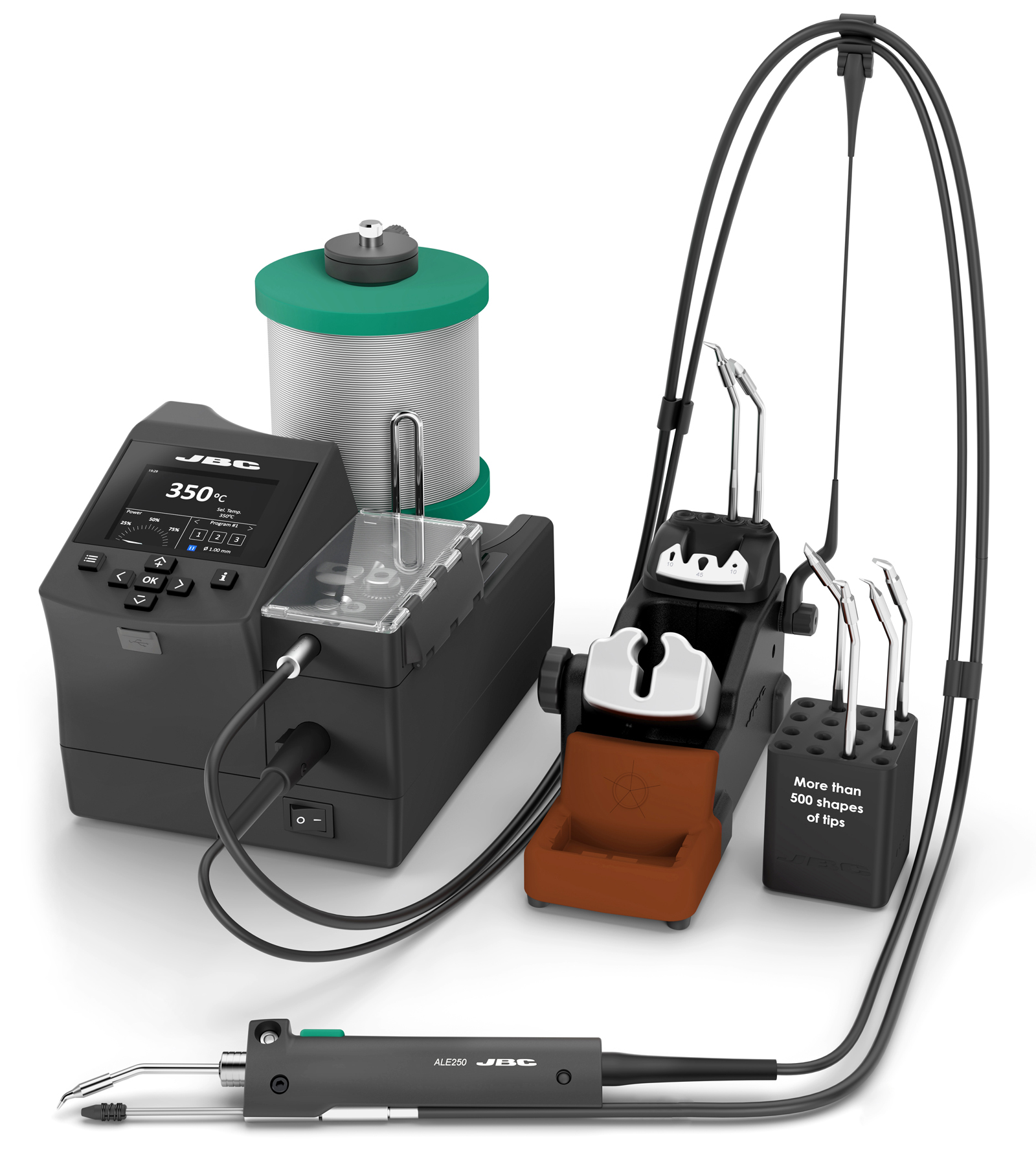

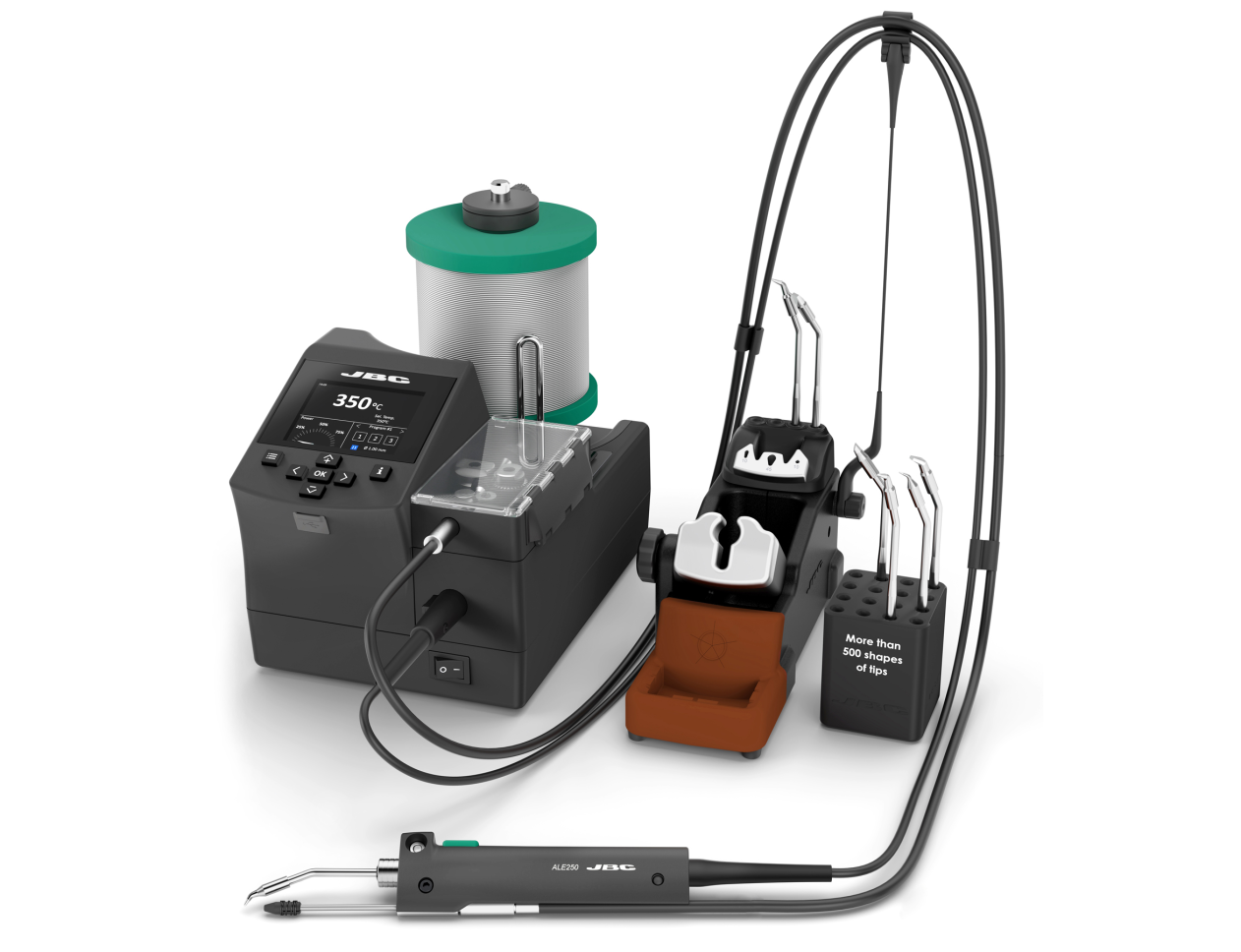

JBC ALE soldering Station with Automatic solder-feed
Ideal for soldering processes requiring high productivity.
It includes JBC Most Efficient Soldering Syste.
This station is supplied with GALE10V to feed solder wire of Ø 1 mm and is furthermore compatible with solder wires from Ø 0.4 mm up to Ø 1.8 mm, using the respective Solder Wire Guide Kit. It features Solder Wire Perforation, allowing better flux flow and outgassing, thus avoiding projections and Foreign Object Debris (FOD).
ALE250 Automatic-Feed Soldering Iron works with C250 Cartridge Range.
This station can hold a solder reel of up to 2 kg / 4.40 lb.
- • 3 different working modes:
Continuous Mode, Discontinuous Mode and Program Mode which allows configuration of dispensed wire speed and length - • Connectivity:
- Data download, remote control for traceability and software updates
SPECIFICATIONS
Peak power
150 W
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
Solder wire diameter
1.0 mm / 0.04 in with GALE10V already assembled
Max. wire length
250 mm / 9.84 in
Min. wire length
0.5 mm / 0.02 in
Temperature accuracy
±3%
ESD safe
Meet ANSI/ESD S20.20-2021
Equipotential bonding
Connection to EPA
Tip-to-ground resistance
<2 ohms
Tip-to-ground voltage
<2 mV RMS
USB-A
Firmware update
Graphics and profiles
USB-B
PC communications
FAE / Robot connector
Remote control or FAE Fume Extractor connection
Pedal connector
Tool control
Compatible Solder Reel
Weight
up to 2 kg / 4.4 Ib
