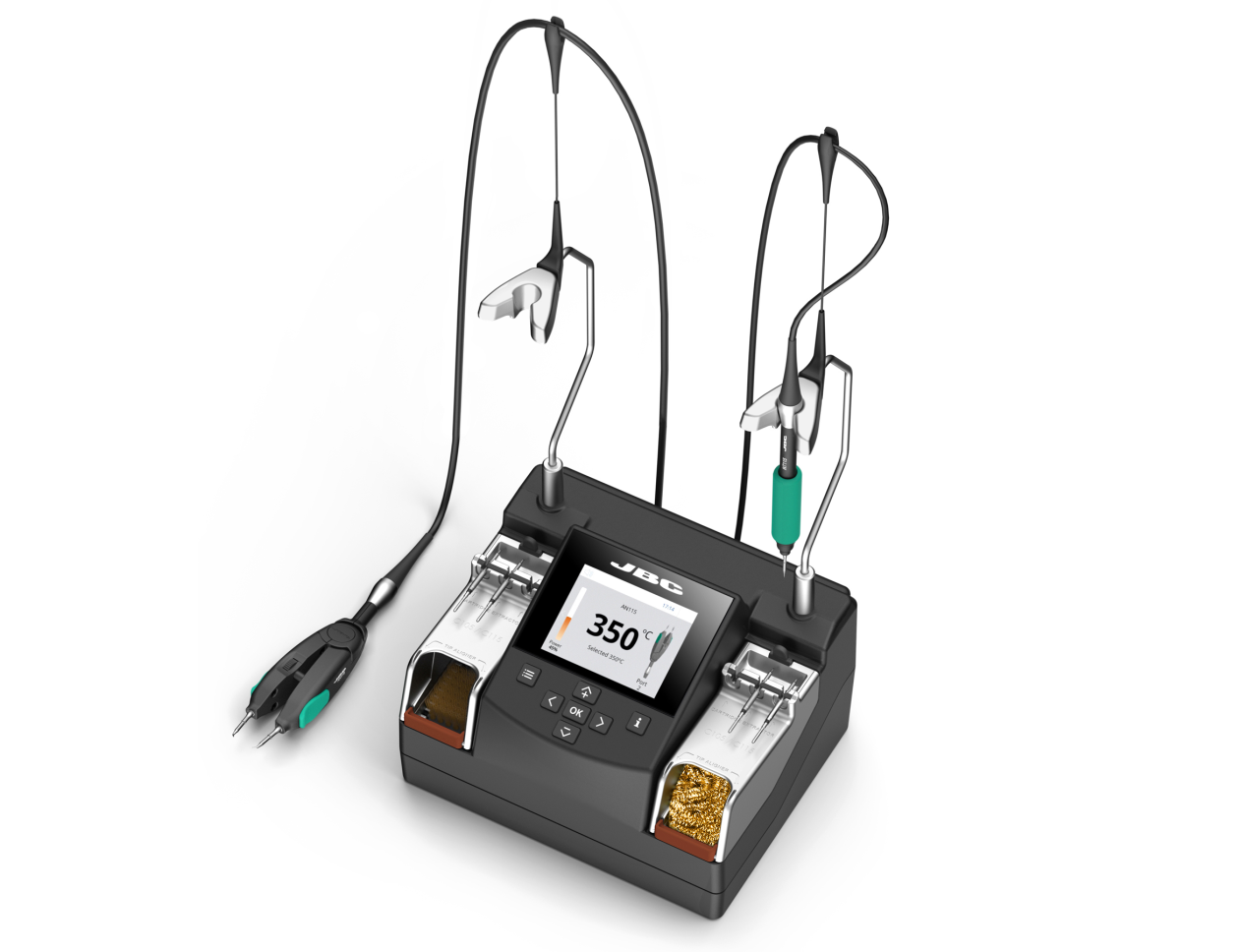

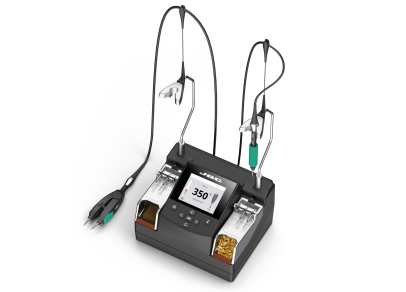

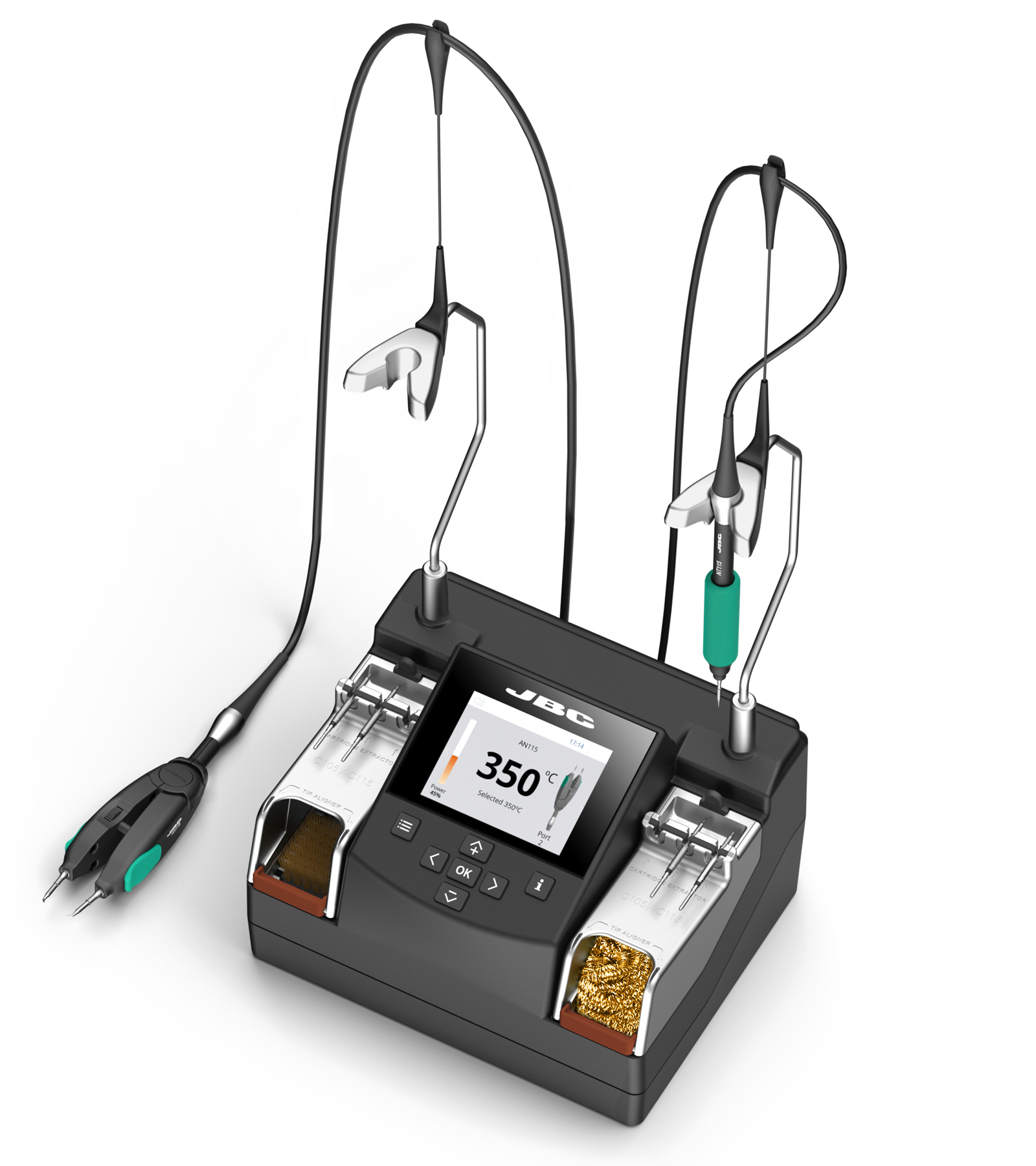

NASE Station 2-Tool Nano Rework
Rework beyond limits
Ideal for soldering and reworking the smallest SMD. It provides all the advantages of JBC Most Efficient Soldering System.
• Improving the soldering quality thanks to JBC Intelligent Heat Management and, additionally, Sleep & Hibernation Modes that extend tip life till 5 times longer
-
- • Complete Tip Cleaning System with an integrated wiper and brush
-
- • Cartridge Holder and JBC Exclusive Cartridge Exchanger, which increases efficiency
-
- • Connection to JBC Fume Extractor via connector RJ12
-
- • Connectivity: datas download, remote control for traceability and software updates
- • NT115 Nano Handle and AN115 Adjustable Nano Tweezers, which work with our C115 Cartridge Range
SPECIFICATIONS
Peak power
14W per tool
Selectable temperature
90 - 450 °C / 190 - 840 ºF
Temperature accuracy
±3%
ESD safe
Meet ANSI/ESD S20.20-2021
Equipotential bonding
Connection to EPA
Tip-to-ground resistance
< 2 ohms
Tip-to-ground voltage
< 2 mV RMS
USB-A
Graphics and profiles
USB-B
FAE / Robot connector
Remote control or FAE Fume Extractor connection
Pedal connectors
1 for each tool
